ACCT – Advanced Cleaning and Coating Technology
The groundbreaking, green alternative to surface texturing, cleaning, and coating of metals.

Slanted Lines
CAP Technologies Video

CAP Technologies Cleaning Demo

CAP Technologies offers a patented, environmentally friendly, unique single process for the surface texturing, cleaning, and/or coating of metals. Electro Plasma Technology (EPT) process allows CAP Technologies to process materials of different sizes and shapes, while retaining the properties of the base metal, at a price comparable to existing processes. Our process allows multiple strands of wire/rod to be processed at the same time, while greatly reducing corrosive properties. The EPT process of depositing coatings produces results significantly better than coatings deposited using conventional methods.



Real World Example of CAP’s Corrosion Protection:

flood_wire_spool

As an example of the superior corrosion resistance properties EPT applied coatings have in real world conditions, take a look at the spool of wire above. This wire was manufactured in early August of 2015 from 1080C 5.5mm (7/32″) rod. When CAP processed the rod, about 8 µm of Zn was applied to it. The rod was then drawn down to 2.04mm (.080″), resulting in the coating thickness to be reduced proportionately to about 2.5 µm. The wire was kept in a non-climate-controlled facility where the temperatures varied from 30-110° F, with humidity levels in excess of 90% at many times.





cap_flood_2016

On August 13th, 2016 CAP Technologies LLC and most of the surrounding area were affected by the devastating flooding that took place in Louisiana. The city of Denham Springs, where CAP resides, took over 27″ of rain in a 36 hour period. The Amite River overflowed it’s banks and CAP took on nearly 4′ of water as a result. This spool of wire was well below the water level and stayed submerged for about 3 days until the water receded.





flood_wire

The spool has been in CAP’s warehouse since the flood (4 months at the time this was written), and still exhibits no sign of rust. To sum it up, this EPT applied Zn coating from CAP that is 2.5µm thick at the wire-size protected this wire from rust in a wide range of temperatures and humidity for a year, then was submerged completely in flood water for 3 days, then left in the same varying conditions of the warehouse for 4 months, and still shows no sign of rusting. Imagine what our coating can do for you!

News and Updates

EPT Process Can Be Used To Apply Specialty Coatings!

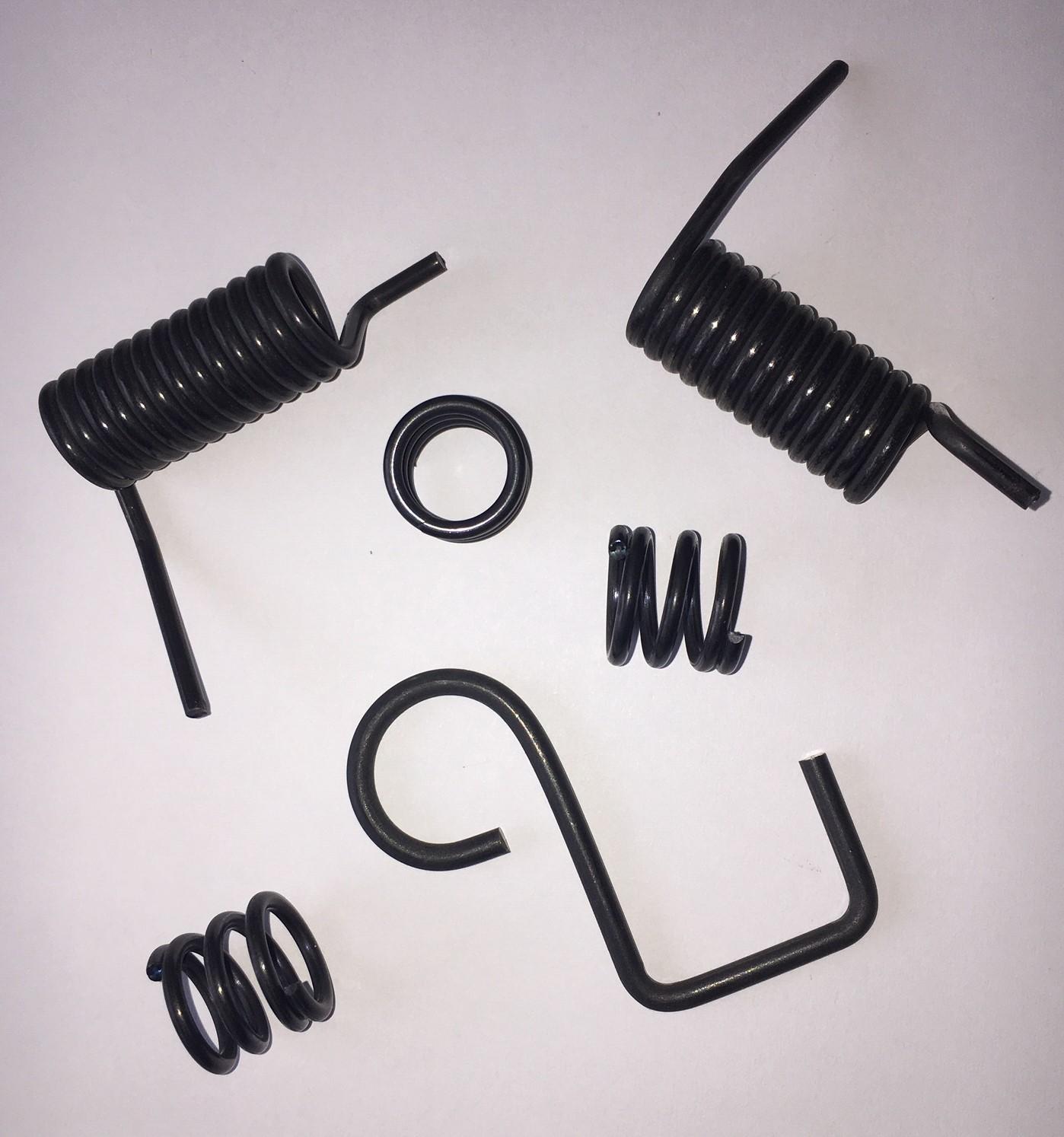

CAP’s EPT coating process can be used to apply specialty coatings such as Silver. Silver is known for its thermal, electrical, and anti-microbial properties, and is used in the electronics and medical industries. For more information on this application, visit our Products section.

CAP Can Reduce Scrap

Using our patented process, CAP is able to reclaim materials that would otherwise be scrapped due to corrosion damage. The photos below are of tire cord rod stock that would have normally been scrapped due to its condition. With our process, the wire was cleaned, coated, and drawn to as much as 90% or more reduction in cross-sectional area with no problems whatsoever. Contact us for more information on reclaiming less-than-prime materials.

HC_before_after_drawn

A new standard for cleaning and coating metals using Electrolytic Plasma Technology (EPT) has been approved by ASTM. The standard will be A1093.

http://www.astmnewsroom.org/default.aspx?pageid=3845

Zn or Zn-Ni coated High carbon rod can be direct drawn with up to 95% reduction in area without any intermediate patenting and with no lubricant carrier at speeds above 1000 fpm.

Slanted Lines

EPT is enviornmentally friendly

No harmful chemicals, no additional chemicals, no hazardous byproduct, no solid waste.

Learn More


Save time with EPT

Time required for cleaning and coating is less than other conventional operations resulting in a smaller operation.

Learn More
Annealed Stainless Steel Prototype

CAP Technologies Map Image

Our LocationView Map

CAP Technologies is Environmentally Friendly

EPT is an environmentally friendly and GREEN process, which provides alternatives to harsh, environmentally unsafe, injurious acids.
